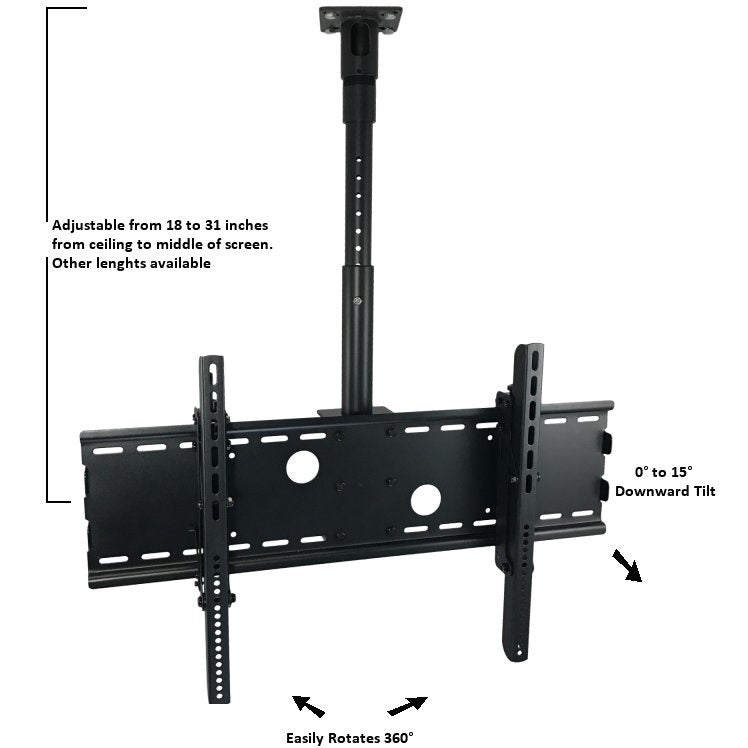

This is our best commercial quality TV ceiling mount for 32 to 88 inch TV's.

• Commercial quality
• Tilt up to 15° down
• Easily Rotate 360°
• Fits screens up to 88 inches
• Fits VESA patterns up to 600 x 400
• Constructed of heavy gauge metal
• Uses 1-1/2 inch pipe for the mast
• 165 lbs weight capacity
• Excellent cable management capabilities. Cables enter bottom of mast and come out through hole in side of ceiling plate or out the top of the ceiling plate.

Ceiling Plate Choices:

• Flat Ceiling Plate
  This is the default choice that most people need.

• Angled Ceiling Plate
  You would choose this to mount to a ceiling that is angled, sloped, or cathedral.
• Adapter for Unistrut
  Unistrut is a U-Shaped metal channel commonly used in construction.
• 11CP001 Ceiling Plate
  This plate is welded steel construction, made in USA and has a large pass through hole in the top, making it easier to pass cables through.
• Call or email us if you need help picking, or possibly a different solution.


Extension Length Choices:

All measurements are measured from where the top plate mounts down to the about the middle of the TV screen.

• The default length is 18 to 31 inches, this configuration uses this 20-33 Adjustable Pipe that is adjustable in 1 inch increments.

• 10 to 18 Inches uses this 12-20 Adjustable Pipe that is adjustable in 1 inch increments.

• 18 to 41 Inches uses the 20-33 Adjustable Mast with the 10 Inch Extension and is adjustable in 1 inch increments.

• 38 to 51 Inches uses the 20-33 Adjustable Mast with the 20 Inch Extension and is adjustable in 1 inch increments.

• 48 to 61 Inches uses the 20-33 Adjustable Mast with the 30 Inch Extension and is adjustable in 1 inch increments.

• No Mast: You would choose this option if providing your own pipe or using a custom combination of other pipes we sell. Keep in mind, the mount and the ceiling plate subtract 2 inches of distance down and you NEED a threaded pipe to connect them together. This subtraction instead of addition is because the pipe comes down pas the middle of the screen. Please call us or email us and we can help you get the right parts.
